🚗 The Ultimate Floor Plate 2-Post Lift for Auto Shops & Home Garages

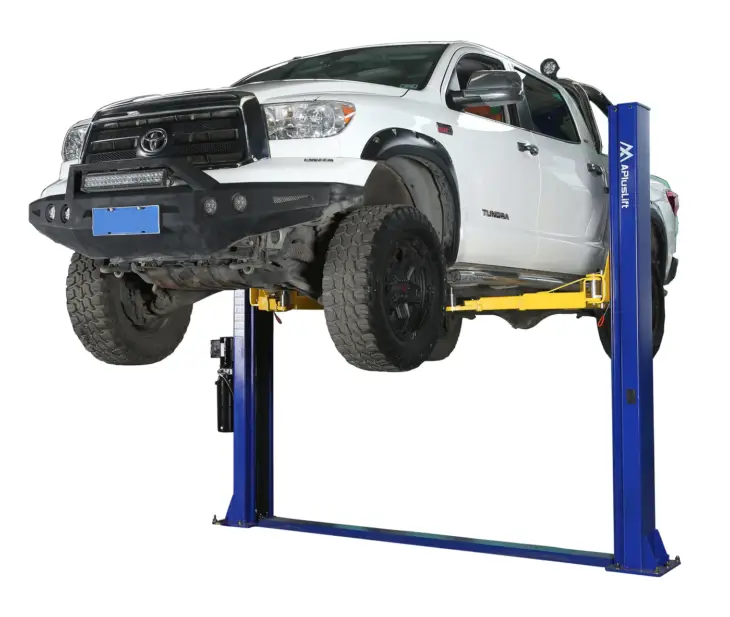

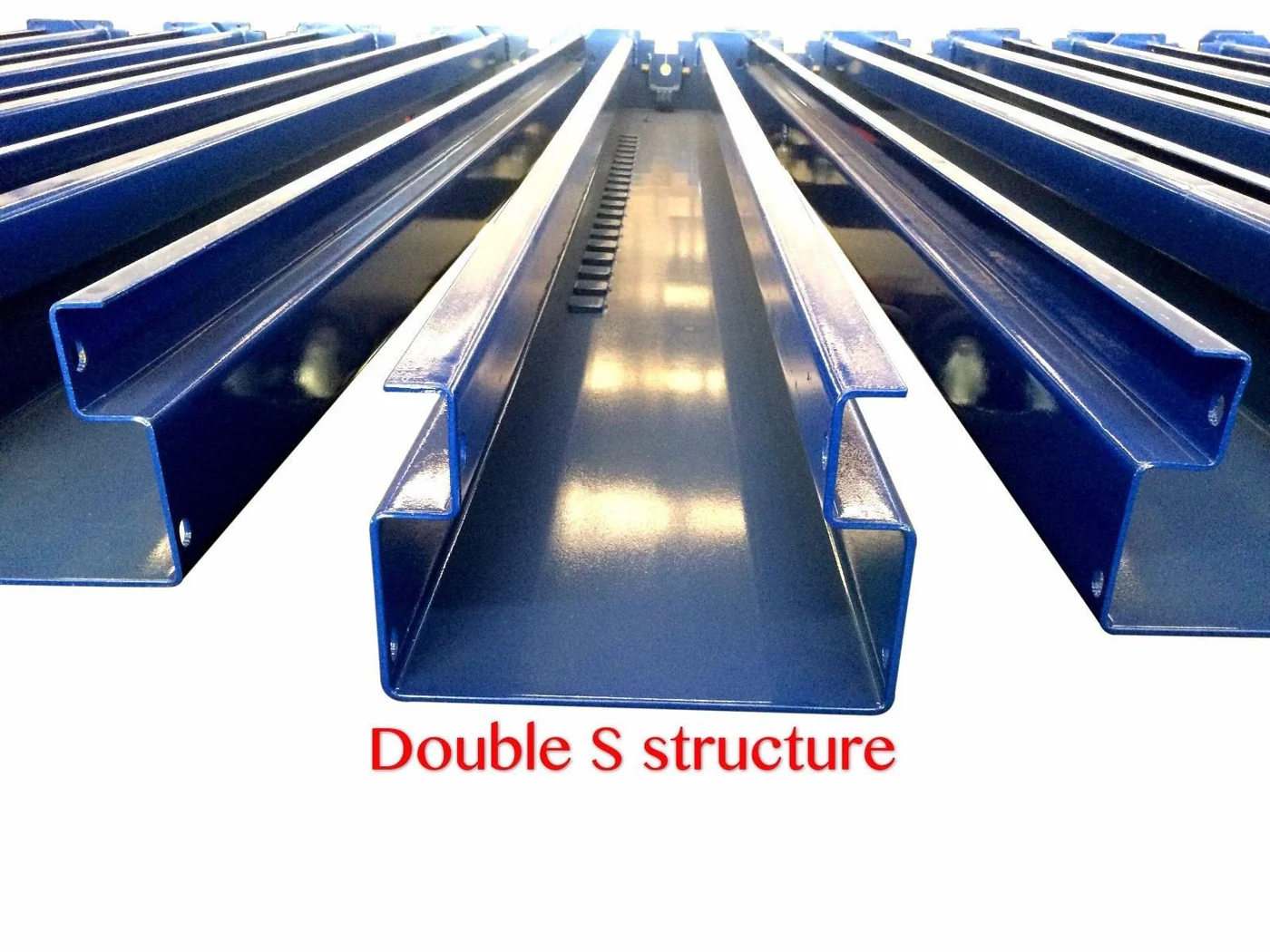

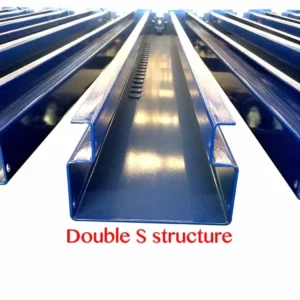

The APlusLift HW-10KBP-A is a 10,000 LB 2-post floor plate car lift designed for mechanics, auto repair shops, and serious car enthusiasts who need a reliable, high-capacity lifting solution. Built with a strong double “S” column design, combo arm assembly (symmetrical & asymmetrical), and an advanced hydraulic system, this lift provides maximum stability, safety, and efficiency for a variety of vehicle repairs and maintenance tasks.
With a durable chain-drive lifting system, reinforced steel construction, and CE-certified safety features, the HW-10KBP-A ensures long-lasting performance and smooth operation—all at an affordable price.
🔧 Why Choose the APlusLift HW-10KBP-A?
✅ 10,000 LB Heavy-Duty Lifting Capacity – Handles cars, SUVs, and light trucks effortlessly.
✅ Floor Plate Design – Ideal for low-ceiling garages while maintaining maximum lift height.

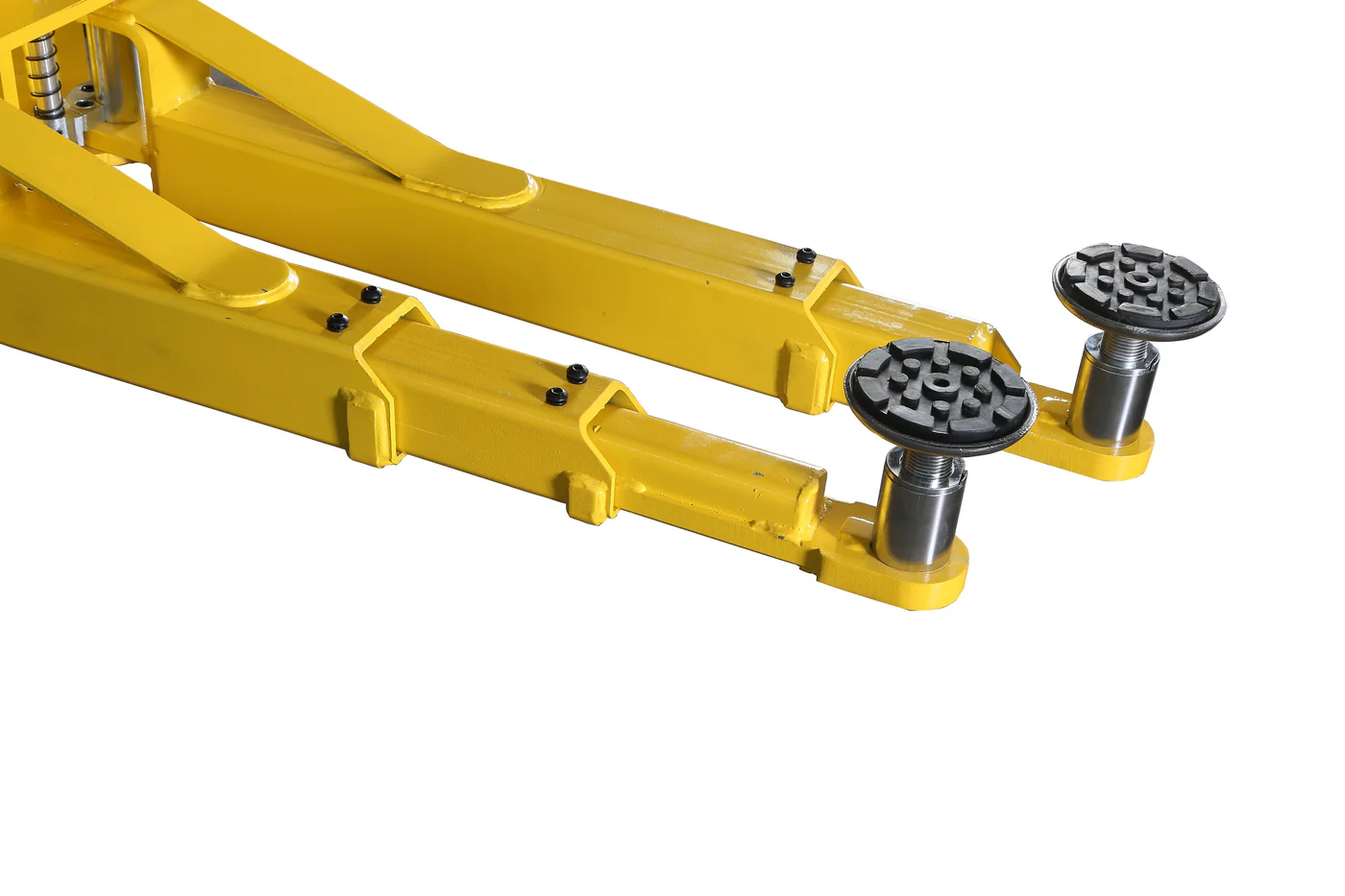

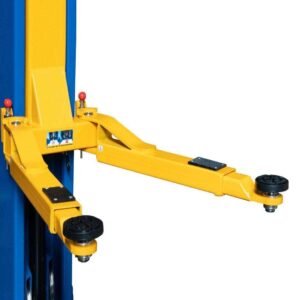

✅ Combo (Symmetrical & Asymmetrical) Arm Assembly – Versatile lifting for various vehicle sizes.
✅ 6’9” Max Lifting Height with Truck Adapters – Provides excellent undercarriage access.
✅ Double-Point Safety Lock Release – Secure and easy lowering with dual safety locks.
✅ Dual Hydraulic Cylinders – Chain Drive System – Reliable and powerful lifting operation.
✅ Heavy-Duty 3/8” Diameter Cables & 5” Pulley – Reduces stress for longer cable life.

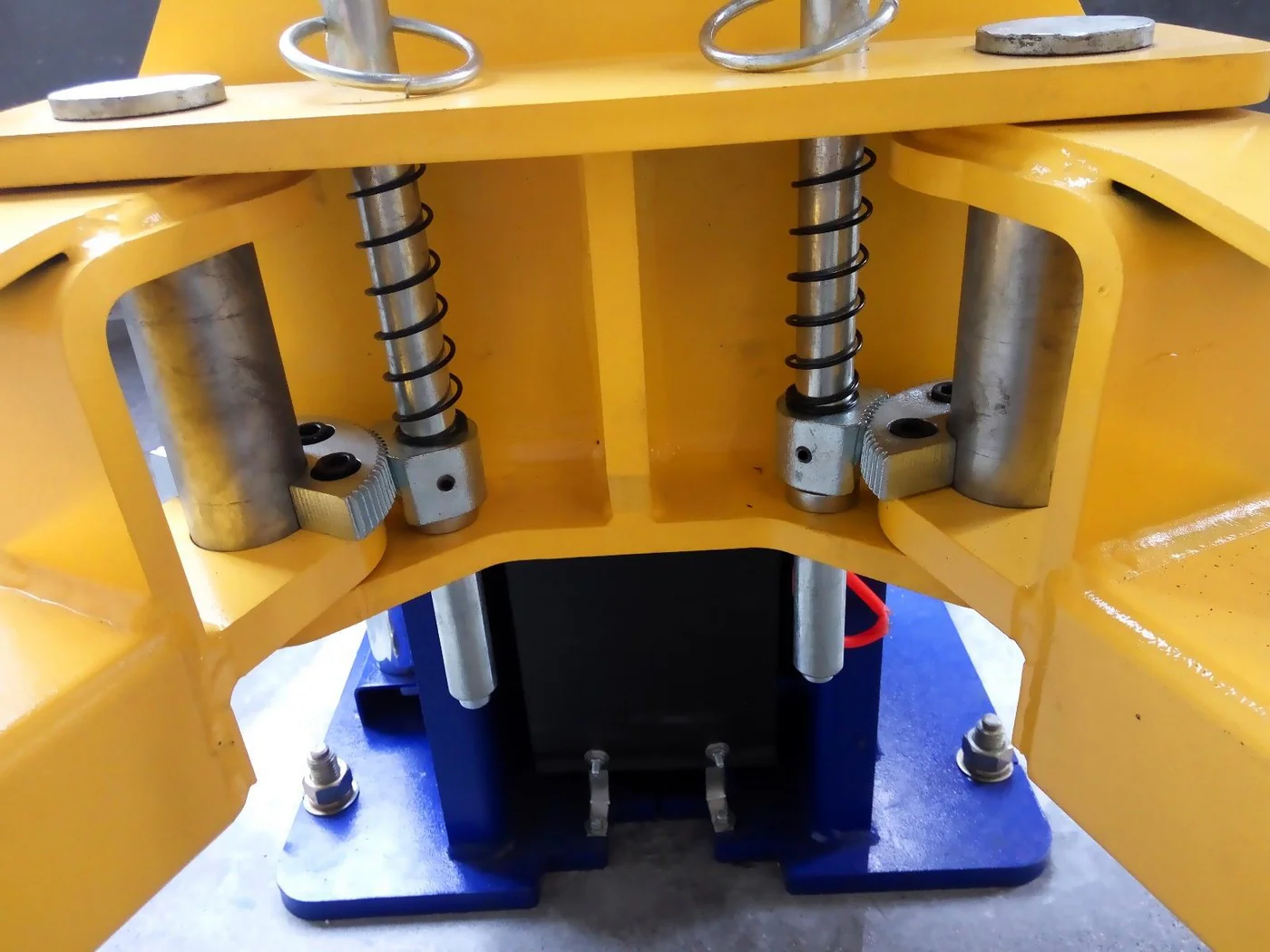

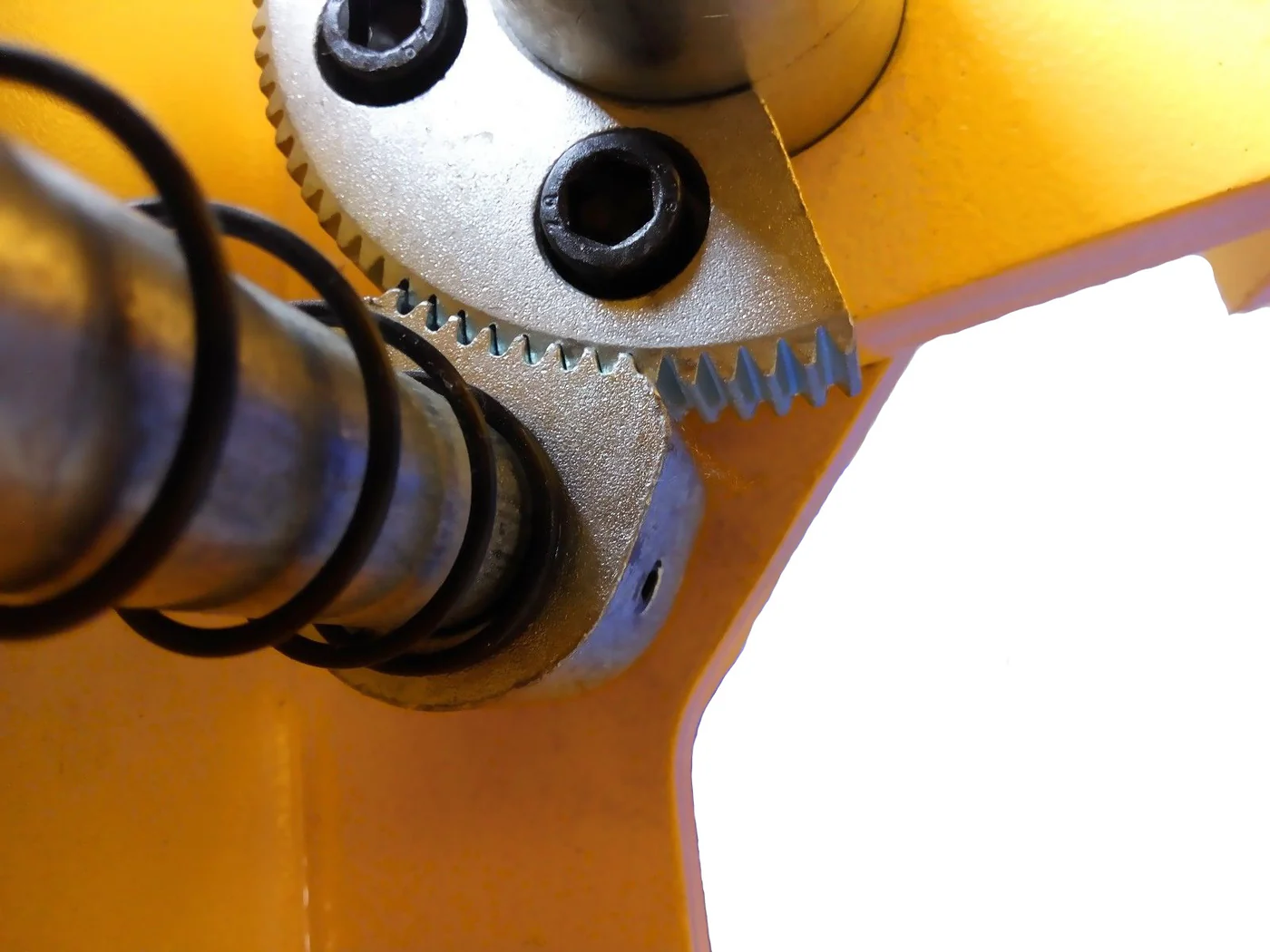

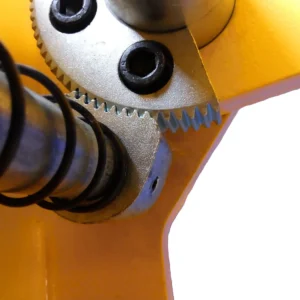

✅ Automatic Arm Lock Restraints – Keeps vehicles securely positioned during service.

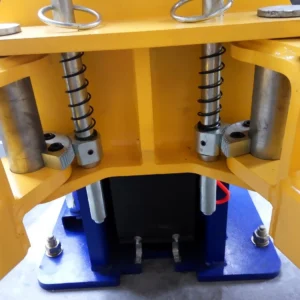

✅ Ultra-High Molecular Self-Lubricating Nylon Slider – Ensures smooth carriage movement.
✅ CE Certified for Safety & Quality – Tested for 115% dynamic load & 150% static load capacity.
✅ Industry-Leading 3-Year Warranty – Comprehensive 36-month parts protection.
📊 Full Specifications
🔹 Performance & Lifting Capacity
- Lifting Capacity: 10,000 LB
- Maximum Lift Height (With Truck Adapters): 81”
- Maximum Lift Height (Without Truck Adapters): 75”
- Maximum Lift Height (Bottom of the Arm to Ground): 71”
- Minimum Pad Height: 4”
- Lift Time: 50 Seconds
- Locking Mechanism: Double-Point Safety Lock Release
- Driving Mode: Dual Hydraulic Cylinders – Chain Drive System
🔹 Build & Design
- Overall Height: 113 5/8”
- Overall Width: 134 5/16”
- Drive-Through Width: 100”
- Column-to-Column Width: 109”
- Column Cross Section: 11”L x 7”W
- Column Steel Thickness: 13/64”
- Carriage Steel Thickness: 15/64”
- Carriage Yoke Thickness: 9/16”
- Arm Steel Thickness: 15/64”
- Base Plate Steel Thickness: 5/8”
- Floor Plate Cross Section: 10 5/8”W x 1 7/8”H
- Finish: Durable Powder Coated (Rust & Corrosion Resistant)

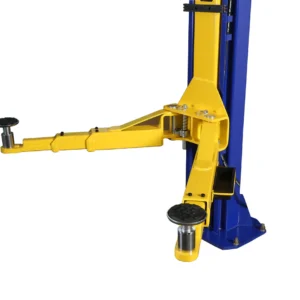

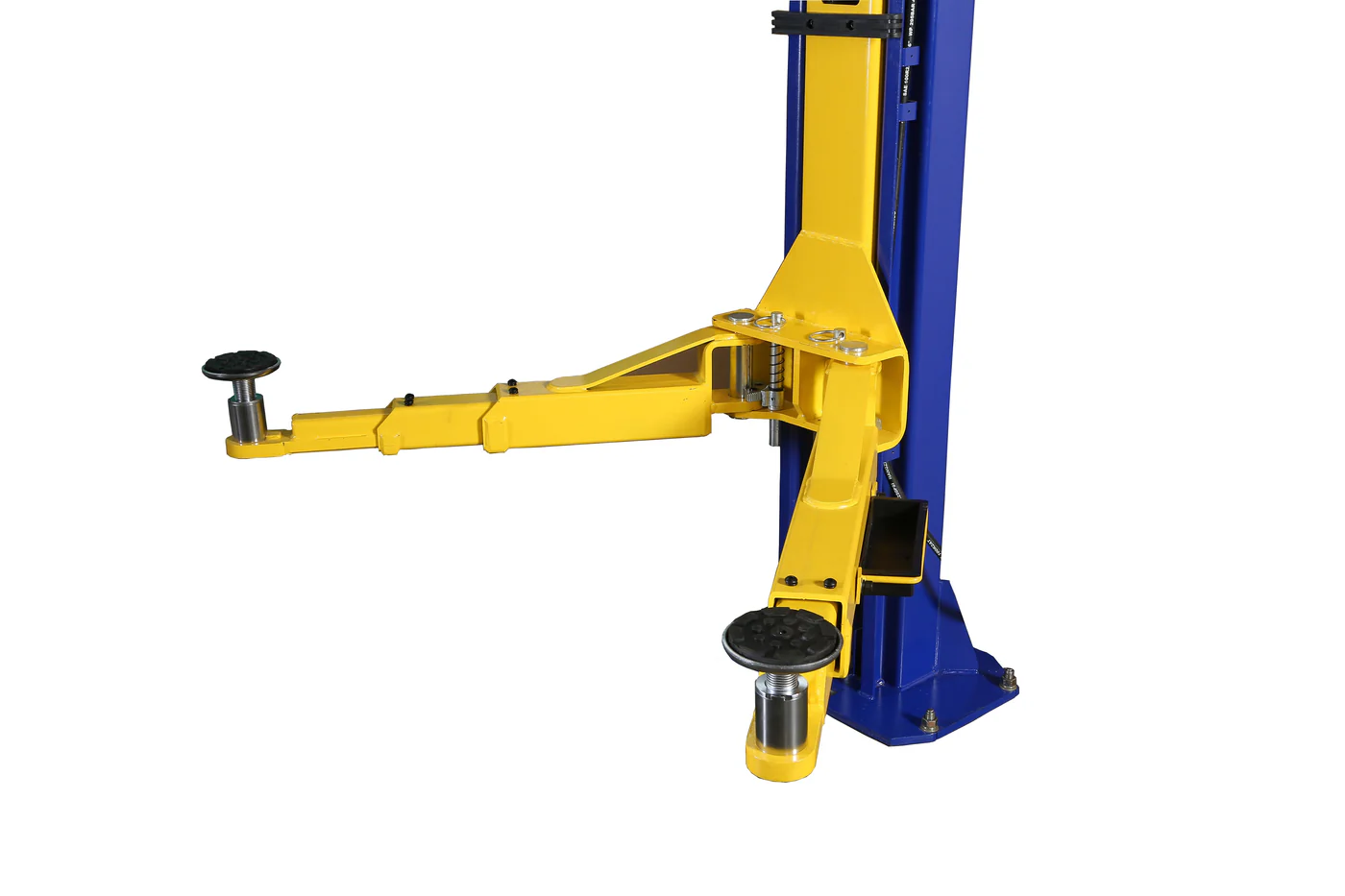

- Arm Assembly: Combo (Symmetrical & Asymmetrical) Arm Assembly

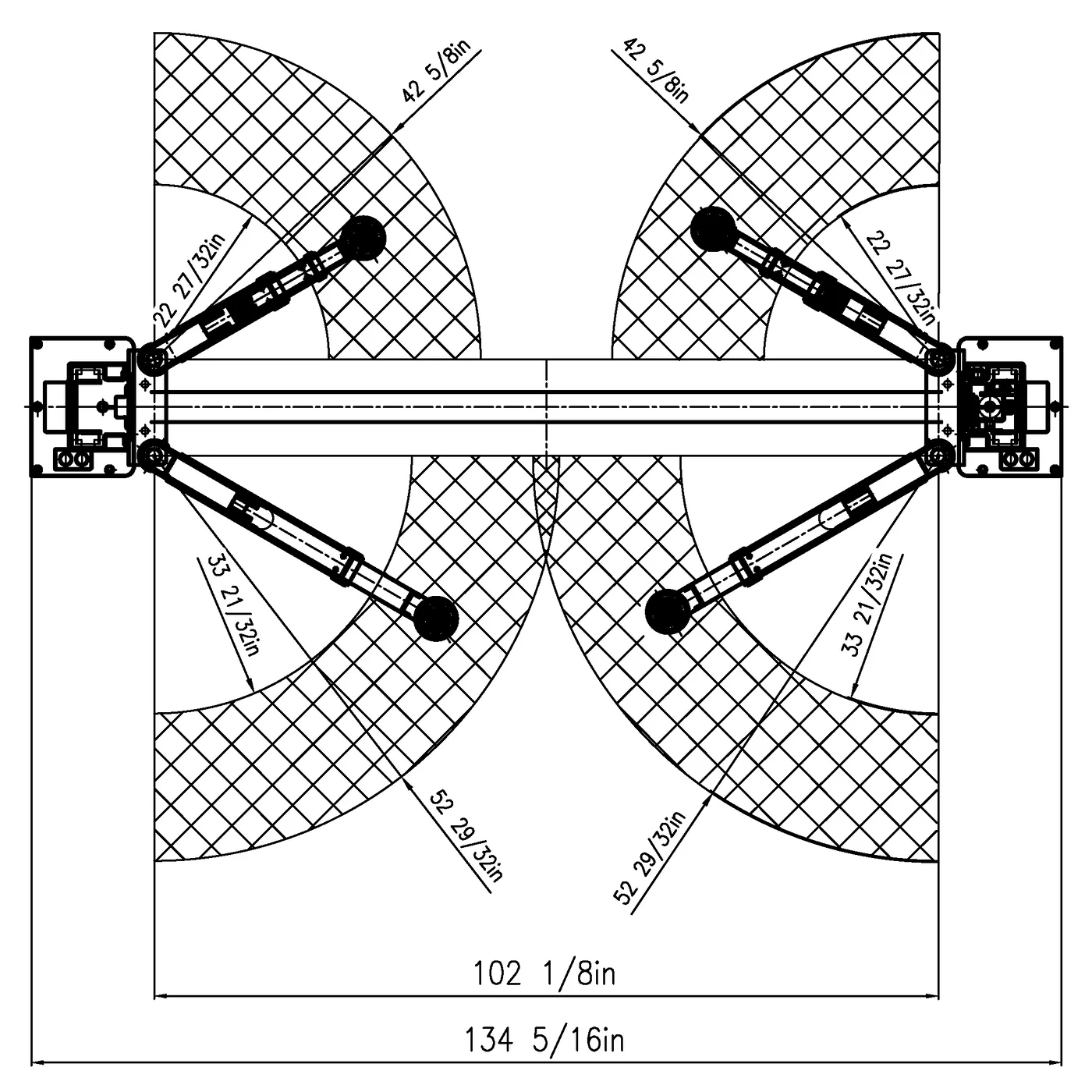

- Front Arm Range: Straight Front 3-Stage (22 7/8” to 42 5/8” reach)
- Rear Arm Range: Straight Rear 2-Stage (33 5/8” to 52 7/8” reach)
🔹 Power & Electrical
- Motor: 220V Single Phase | 3HP | 10A (Recommend a 30A Breaker)
- Hydraulic Oil Requirement: 3-5 gallons AW32/AW46 (Not Included)
🔹 Safety & Features
- CE Certified for Quality & Safety – Meets strict safety regulations.
- Heavy-Duty 3/8” Diameter Cables – Longer life & increased stability.
- Automatic Arm Lock Restraints – Secures the vehicle in place for safe operation.
- Ultra-High Molecular Nylon Slider – Ensures smooth carriage movement.

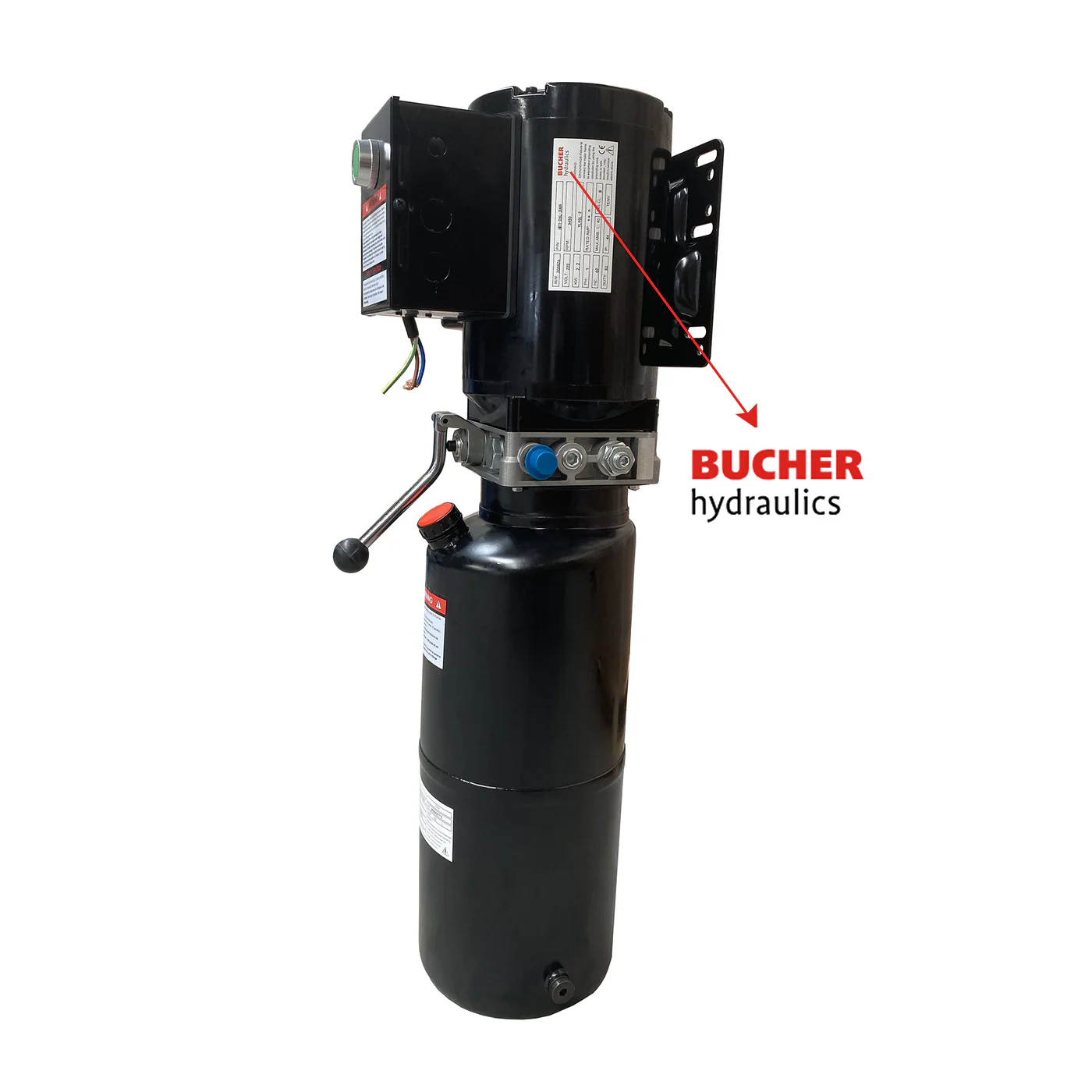

- Relief Valve Built into Power Pump – Prevents overloading & system damage.
- Rubber Door Guards – Protects vehicles from accidental dings & damage.
- Up-Limit Switch – Prevents cylinders from overextending.
- Beveled Diamond Plate Steel Floor Plate (5/32” with Supporting Bracket) – Ensures durability and stability.

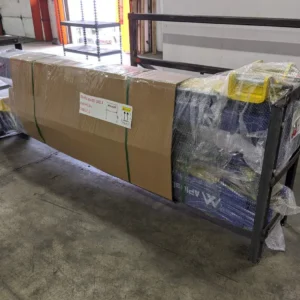

📦 Shipping & Installation

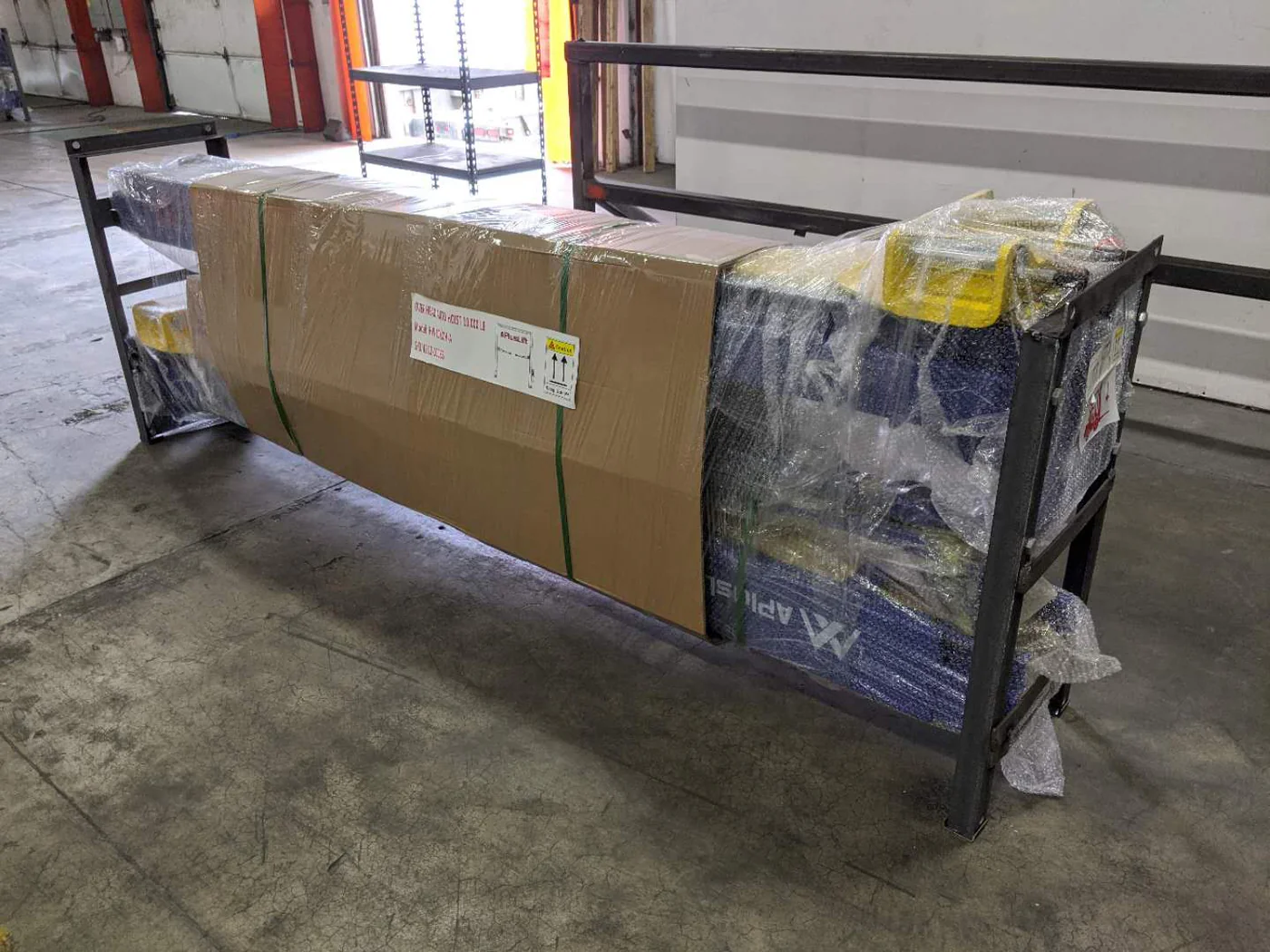

- Shipping Weight: 1,370 LB
- Shipping Dimensions: 113”L x 22”W x 40”H
- Concrete Requirement: 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)
Parts Included:

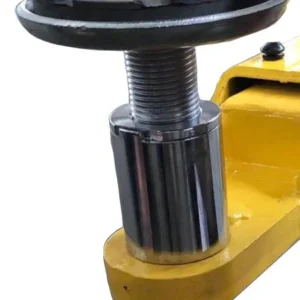

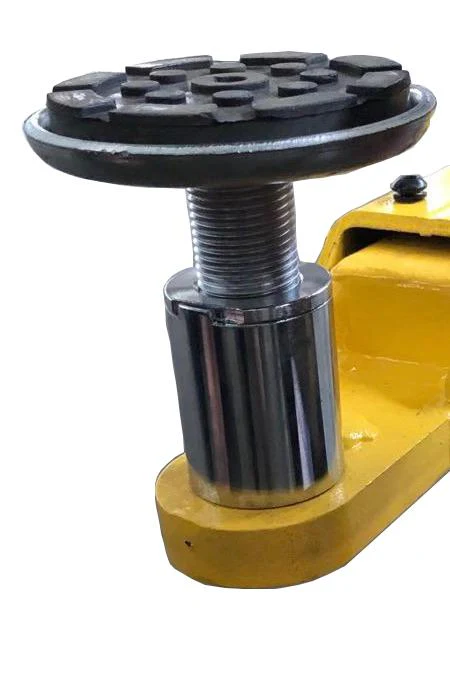

✔ 4 Adjustable Screw Pads
✔ 4 Pieces of 4” Tall Truck Adapters (Height Extensions)
✔ 10 Anchor Bolts
✔ 10 Shims

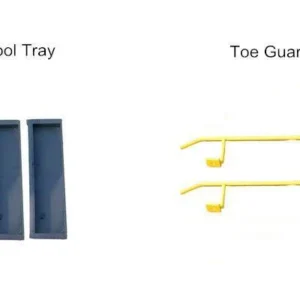

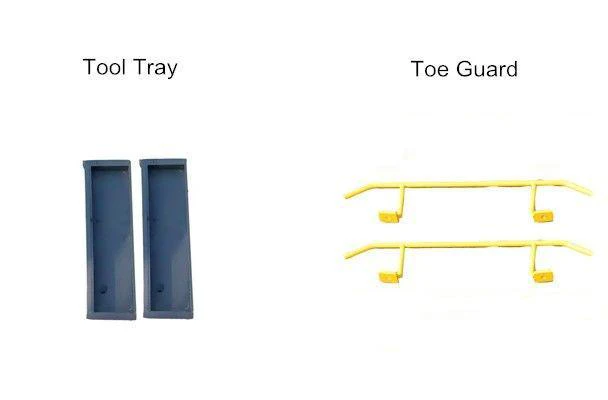

✔ 2 Tool Trays
✔ 2 Toe Guards
💪 Built for Professional-Grade Lifting – Perfect for Auto Shops & Enthusiasts!
The APlusLift HW-10KBP-A is designed for mechanics, car restoration experts, and auto repair shops that need a high-capacity, ultra-durable 2-post lift at an affordable price. Its floor plate design makes it ideal for garages with low ceilings, while the reinforced steel structure and advanced hydraulic system ensure years of reliable performance.
🔥 Limited Stock – Order Now & Upgrade Your Garage with a Professional-Grade Lift! 🔥
Reviews (7)
7 reviews for APLUSLIFT HW-10KBP-A 10000 LB 2-POST FLOOR PLATE HEAVY DUTY CAR LIFT WITH 3 YEAR WARRANTY
Add a review
Related products
Two post lifts
Two post lifts
Two post lifts
Two post lifts
Michele G –
The good, the bad, and the ugly.
The good
The shipping was really fast.
A nice looking unit.
Easy to install. I had at least 6″ of concrete floor to mount it in. The anchors grabbed well. I had to re-tighten a couple after the first lift.
Very nice power unit.
I like the safety release mechanism unlike the other lifts I have where I have to hold the latch release the entire time of lowering the vehicle.
The bad
It claims to be able to do 10,000 lbs, I would not try to lift anything beyond 7,000 lbs. I have a Titan lift that is rated for 9,000 lbs. If this one can 10,000 then my Titan lift can do 20,000.
The ugly
I saw some reviews that said they were concerned when they saw the lift arms flex. I put a 6,500 lb vehicle on it and well yes the arms were flexing. When I had it to it’s upmost position I shook the vehicle and it moved way too much in my opinion. I will end up doing the same thing as a couple of others and use jack stands when doing heavy duty work.
In a nutshell the price is good but the weight lift rating is too high in my opinion.
Breckbordr –
to unload from freight truck. This is a heavy unit and the entire package is bolted to two nice metal legs (re-purposed now as the support legs for my sandblaster, BONUS). If you don’t have a forklift you’ll have to disassemble on the truck and unload each piece with somebody’s. installed in a day and used included bolts with epoxy. Running 250v power was straightforward and adjustment and leveling lift was a cinch. I did have issues the pins not sliding into two of the arms to connect to carriage, but the seller was quick to respond and ship new arms. A+. Don’t even bother shopping around like I did for weeks. Just buy this one. It will do everything you want it to do, but most importantly the seller stands behind his product, unlike the Chinese sellers on the Eleveault automotive.
Paul Souve –
Great lift
Had mine for over 3 years now never had an issue works like new. Great lift for the money
I have had 2500 HD on it with no issues. I wouldn’t go any higher then that def stay around 8k or less to be safe it’s still a Chinese lift lol
Richard Patton –
Got it all installed today and working, very sturdy built for sure, everything was straight forward on the install the only thing missing was one nut for the mounting of the pump which is absolutely no big deal, don’t spend thousands for big name just get this one it will surpass the others
Robert Hifai –
Measure ten times and drill once
Took me two days by myself to install the lift. The directions were a big vague when it comes to syncing the cables. I did drill a rest hole to verify my slab was 5 to 6 inches thick.
It doesn’t come with hydraulic fluid, so plan ahead.
W. Mercer –
I am pleased with this lift. I installed it single handedly, without issue. I was a little disappointed with lowering speed
Dave th’ Wave –
A well built heavy duty lift!
Lift was easy to install and performs well.
